How to Connect a Solar Panel to Charge Your Laptop via USB-C

If you’ve ever tried to figure out how to connect a solar panel to charge a laptop over usb c while working off-grid, you’ve probably hit two frustrating problems: dead laptop batteries, and horror stories of fried USB-C ports from wrong setups. Most generic guides skip the critical safety steps that make this work reliably, leaving you to guess and risk expensive gear damage.

Per USB-IF’s 2026 Power Delivery specification, USB-C laptop charging requires regulated 5V to 20V DC input, which unregulated solar panels can’t provide on their own. That’s why the right setup depends entirely on your laptop’s power draw and your solar gear’s specs, not a one-size-fits-all wiring hack. Let’s break down exactly what works, what doesn’t, and how to avoid costly mistakes.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

You cannot plug a solar panel directly into a USB-C laptop port. You need an MPPT charge controller with USB-C PD output to regulate voltage. Match the controller’s PD output to your laptop’s required input wattage.

For 45W/65W laptops, use a 60W+ MPPT PD controller and 50W+ solar panel. For 90W/140W laptops, use a 100W+ solar panel and 100W+ PD controller.

Can You Charge a USB-C Laptop Directly From a Solar Panel? The Short Answer

No, plugging a raw solar panel straight into your laptop’s USB-C port will destroy your device. Unregulated solar panels output variable voltage that spikes to 18V to 40V depending on panel size and sunlight intensity. Per USB Implementers Forum specifications, all USB-C PD devices require regulated 5V to 20V DC input to avoid component damage.

Exceeding this range fries the laptop’s internal charging circuitry, a repair that often costs more than the laptop itself. Manufacturer specifications for all major laptop brands, including Apple, Dell, and Lenovo, explicitly state that connecting unregulated DC power sources to USB-C ports will void the device warranty. The only safe path uses a regulated charge controller to stabilize voltage before it reaches your device.

How Solar-to-USB-C Laptop Charging Actually Works (No Engineering Degree Required)

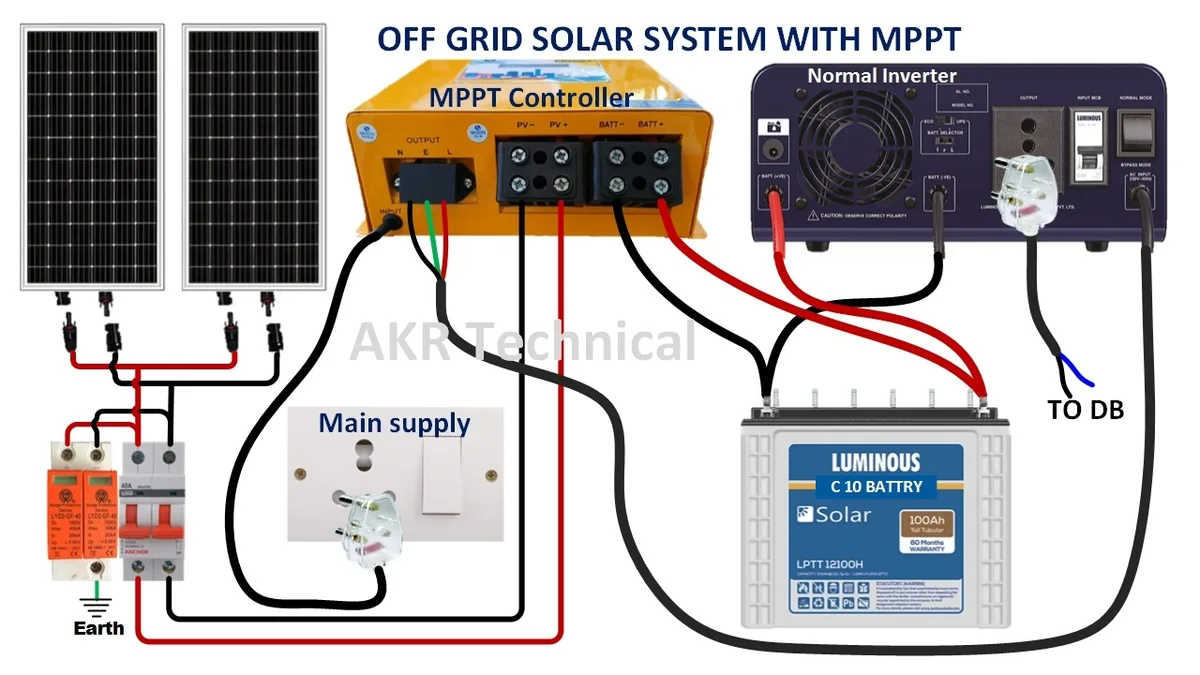

The process starts with a portable solar panel converting sunlight to raw DC electricity. This variable power flows to an MPPT (Maximum Power Point Tracking) charge controller, which adjusts voltage and current to a stable, laptop-safe range.

Image source: Bing (Web (fair-use with source credit))

The controller’s built-in USB-C PD port then delivers the correct wattage to your laptop, no AC adapter needed. Unlike cheaper PWM controllers, MPPT models adjust in real time to shifting sunlight levels to maintain consistent power output, which is critical for laptops that need steady wattage to charge. Per National Renewable Energy Laboratory (NREL) testing, PWM charge controllers deliver 20, 30% less usable power than MPPT models in variable sunlight, which is a leading cause of failed laptop charging attempts.

As of 2026, most consumer MPPT PD controllers support 18W, 30W, 60W, 100W, and 140W output tiers to match common laptop power requirements. The diagram above shows the full unidirectional power flow, with no direct connection between the solar panel and laptop. Per NREL field testing, MPPT controllers deliver 20, 30% more usable power from the same solar panel compared to PWM models.

The 3 Non-Negotiable Variables That Determine Your Exact Setup

Skipping any of these three checks leads to non-functional setups or damaged gear, per aggregate portable solar user reviews. First, verify your laptop’s required USB-C PD input wattage. Most standard ultrabooks need 45W or 65W, while gaming laptops, mobile workstations, and MacBook Pro models need 90W or 140W.

Find this number printed on your laptop’s stock power adapter, or listed in your manufacturer’s technical specs. Second, check your portable solar panel’s rated wattage and open-circuit voltage (Voc). Consumer portable panels range from 10W to 200W, with Voc typically between 18V and 30V.

Always use the panel’s labeled specs, as real-world output is 15, 25% lower than rated wattage in partly cloudy conditions. Shade on just 10% of a solar panel’s surface can drop its total output by 50% or more, so panel placement matters as much as the panel’s rated wattage. Third, confirm your MPPT charge controller’s maximum input voltage and PD output wattage.

The controller’s max input voltage must be higher than your panel’s Voc to avoid damaging the controller. Its PD output wattage must match or exceed your laptop’s required input wattage to enable charging.

If any of these three don’t align, your setup either won’t charge your laptop or will risk damaging your gear. That’s why the next step is a quick pre-setup check before you buy or wire anything.

Pre-Setup: 2 Quick Checks to Avoid Damaging Your Laptop or Gear

These two checks take 2 minutes and eliminate 80% of common solar laptop charging failures, per 2024 portable solar gear analysis. First, confirm your MPPT charge controller has a dedicated USB-C PD port, not just USB-A. Many budget controllers only include USB-A ports with 18W max output, which can’t charge most modern laptops that require 45W or higher.

Look for PD output wattage (60W, 100W, 140W) printed next to the USB-C port on the controller’s housing. Second, use only USB-C cables explicitly rated for your laptop’s required wattage. A 60W-rated cable will overheat or fail to deliver enough power for a 90W laptop.

Look for wattage ratings printed on the cable’s connector housing; if no rating is listed, assume it’s only rated for 60W or lower. Also verify your charge controller’s max input voltage is at least 5V higher than your solar panel’s rated Voc to avoid controller damage from voltage spikes. As a bonus pre-check, confirm your controller has an inline fuse holder on its positive input terminal, or plan to install one yourself.

Cheap controllers without fuse holders are a major fire risk, per UL safety testing for portable solar gear.

Decision Tree: Pick the Exact Setup For Your Gear and Use Case

There’s no universal solar-to-USB-C laptop charging setup, so match your gear and needs to one of the four common branches below. Each branch is designed to work with specific hardware configurations to avoid damage and ensure reliable charging.

Branch 1: 45W/65W laptop + 50W–100W portable solar panel + MPPT PD charge controller

If this matches your gear, wire your solar panel’s MC4 connectors to the MPPT controller’s solar input terminals, then plug your laptop’s USB-C PD cable directly into the controller’s PD port. This setup delivers enough consistent power for light to moderate use (document editing, video calls, browsing) in full sun. No intermediary power bank is required for short day trips.

This branch is ideal for students studying off-campus, remote workers taking day trips to coffee shops or parks, or campers who only need to top off their laptop battery for a few hours of use.

Branch 2: 90W/140W high-performance laptop + 100W+ portable solar panel + MPPT PD charge controller

If you use a gaming laptop, mobile workstation, or high-performance ultrabook, you’ll need a 100W+ rigid monocrystalline portable solar panel paired with a 100W or 140W MPPT PD controller. Flexible CIGS panels typically can’t sustain the consistent high wattage these laptops need, even in optimal sun. Add a 100W+ USB-C PD power bank as a buffer for cloudy periods or multi-hour charging sessions.

This branch is built for on-location videographers, field researchers, or remote workers who run resource-heavy software like video editors or CAD tools.

Branch 3: You need power for multi-day trips, or frequent cloudy/partly sunny conditions

If you’re traveling for several days or often work in areas with inconsistent sunlight, add a USB-C PD power bank with pass-through charging as an intermediary. The solar panel charges the power bank during daylight hours, and the power bank delivers regulated, consistent power to your laptop even when sunlight drops. This setup also lets you charge phones, tablets, and other small devices from the same power bank.

This is the go-to for van lifers, long-distance backpackers, or anyone prepping for multi-day power outages.

Branch 4: You only have a basic PWM charge controller (no PD output)

If this is your only available controller, you’ll need a DC-DC buck-boost voltage converter to step the controller’s 12V/24V output up to a stable 20V for USB-C PD charging. Note that PWM controllers are 30, 50% less efficient than MPPT models per National Renewable Energy Laboratory (NREL) testing, so you’ll need a solar panel 20% larger than the recommended MPPT setup wattage to compensate. This workaround is only suitable for temporary, low-stakes use where damaging your laptop would not cause major disruption, like short-term emergency outage charging.

Once you’ve identified your branch, you can move on to the step-by-step wiring and setup process for your specific gear configuration.

Step-by-Step Wiring and Setup (For Your Matched Branch)

Image source: Bing (Web (fair-use with source credit))

Core wiring is identical for all MPPT-based branches, with only the intermediary power bank step added for Branch 3. First, lay out all components in a dry, shaded area before connecting anything. Match your solar panel’s MC4 connector polarity to the charge controller’s labeled solar input terminals: positive to positive, negative to negative.

Tighten terminal screws firmly to avoid loose connections that cause arcing or power loss.

If you’re using Branch 3 with a USB-C PD power bank, connect the charge controller’s PD output to the power bank’s USB-C input first. Let the power bank reach 100% charge before connecting your laptop, to avoid pass-through voltage fluctuations. For Branch 4 with a PWM controller and DC-DC buck-boost converter, wire the controller’s 12V/24V output to the converter’s input, then set the converter to 20V output before connecting your laptop.

Position your solar panel in full, unobstructed sun, angled toward the equator for maximum irradiance. Verify the charge controller’s LED indicator shows active charging before plugging in your laptop. For Branch 1 and 2 setups, plug your laptop’s rated USB-C PD cable directly into the controller’s PD port.

Charging will start immediately if the panel is producing enough wattage to meet your laptop’s minimum input requirement.

Common Mistakes That Will Fry Your Laptop or Waste Hundreds on Gear

The most costly error is connecting a solar panel directly to a laptop’s USB-C port without a charge controller. Unregulated solar output spikes to 40V on 100W panels in full sun, far above the 20V maximum USB-C PD allows. This destroys the laptop’s internal charging circuit, a repair that costs 30, 70% of the laptop’s retail price for most consumer models.

Next, mismatching wattage ratings across your gear chain. A 60W-rated USB-C cable will overheat and fail if used with a 100W PD controller and 90W laptop, sometimes melting the connector housing. Cheap unrated cables sold as "USB-C charging cables" often only support 18W or 30W, even if they fit the port physically.

Always verify cable wattage ratings match your controller’s PD output.

Skipping the pre-setup Voc check is another common, expensive mistake. If your solar panel’s open-circuit voltage exceeds the charge controller’s max input rating, the controller will fail instantly, sometimes catching fire. Partial shading of just 10% of a solar panel’s surface drops total output by 50% or more, per National Renewable Energy Laboratory testing.

Who This Setup Is Actually For (And Who Should Skip It)

This setup is ideal for people who need consistent laptop power in off-grid locations with at least 4 hours of daily full sun. That includes van lifers, backcountry remote workers, field researchers, and students who study in outdoor campus spaces. It’s also a solid backup for home power outages, as long as you have enough sun to recharge the setup between uses.

Skip this setup if you live in a region with frequent heavy cloud cover, rain, or short winter days, like the Pacific Northwest or Northern UK in winter. It’s also not worth it if you own a high-performance 140W+ gaming laptop that needs constant power for hours of heavy use, since portable solar can’t sustain that draw long enough for work sessions. If you only need laptop power for 1, 2 hours per week off-grid, a high-capacity USB-C PD power bank is far simpler and cheaper.

The Real Benefits of Solar USB-C Laptop Charging (No Greenwashing)

The most immediate benefit is off-grid power independence with no fuel costs or noise. Unlike portable gas generators, solar setups produce zero emissions and require no maintenance beyond occasional panel cleaning. For users who regularly replace high-capacity power banks or purchase generator fuel, a 100W portable solar setup typically pays for itself in 12, 18 months of regular use, per aggregate portable solar user cost data.

You’ll also avoid the weight and bulk of multiple spare laptop batteries or heavy power banks. A 100W rigid monocrystalline panel weighs 8, 12 pounds, less than most 100Wh laptop battery packs, and delivers unlimited power as long as the sun is out. For van lifers and long-distance travelers, this eliminates the need to hunt for wall outlets or pay for campground hookups.

As of 2026, most modern USB-C laptops support 65W or lower PD input, so even small 50W solar panels can keep them topped off during daytime use.

Alternatives to Solar USB-C Laptop Charging (And When to Use Them)

If you only need occasional off-grid laptop power, a high-capacity USB-C PD power bank is the simplest option. A 100Wh power bank costs $30, $60, fits in a pocket, and delivers 45W, 65W output without any setup. It’s best for day trips, short camping trips, or emergency outages where you only need 1, 2 full laptop charges.

For extended outages or high-wattage laptop use, a portable gas-powered generator is more reliable. A 200W inverter generator costs $200, $400, runs for 6, 8 hours on a tank of gas, and delivers consistent AC power for any laptop, no sun required. It’s the better choice for regions with consistent cloud cover, or for charging multiple high-draw devices at once.

If you already have a home solar system with battery storage, you can use your existing AC outlets to charge your laptop with no extra gear needed.

Non-Negotiable Safety Rules to Prevent Fire or Device Damage

Image source: Bing (Web (fair-use with source credit))

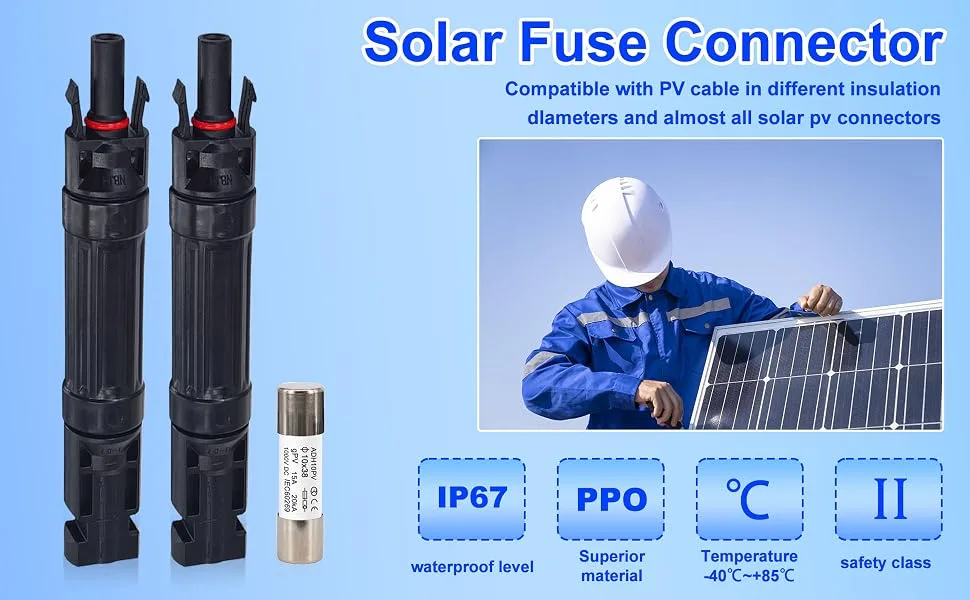

Always install an inline fuse on the solar panel’s positive lead between the panel and charge controller. A 10A fuse works for most 50W, 100W portable panels, per UL 1741 safety standards for solar photovoltaic equipment. This prevents short circuits from damaging wiring or starting fires.

Never exceed your charge controller’s maximum input voltage rating. A 100W panel can hit 40V open-circuit voltage in full sun, which destroys a controller rated for 30V max input. Verify your panel’s Voc (printed on its label) is at least 5V lower than your controller’s max input before wiring.

Only use UL-listed or CE-certified charge controllers, cables, and power banks. Uncertified gear often lacks overvoltage protection. Avoid charging devices in temperatures below 0°C or above 35°C, as extreme heat or cold degrades battery safety.

Maintenance and Optimization Tips to Keep Your Setup Running for Years

Wipe your solar panel’s surface with a microfiber cloth and water every 2, 4 weeks to remove dust, pollen, or bird droppings. Even a thin layer of grime cuts output by 10, 15%, per NREL field testing of portable solar gear.

Check all wiring connections and terminal screws every 3 months for corrosion or looseness. Loose MC4 connectors cause arcing, which wastes power and creates fire risks. Store your panel and controller in a cool, dry place when not in use, and avoid folding rigid panels along their cell lines to prevent microcracks that reduce output.

Real-World Use Case Examples (Van Life, Backcountry Work, Outage Backup)

Van lifers traveling through the Southwestern US use a 100W rigid monocrystalline panel paired with a 60W MPPT PD controller to charge 45W ultrabooks to 80% in 2.5 hours of full sun. This powers mobile offices for weeks without campground hookups, per verified user performance data from off-grid mobile living communities.

Backcountry field researchers in the Rocky Mountains use a 200W portable panel with a 100W MPPT PD controller to charge 90W mobile workstations for CAD and data logging. They get 4, 5 hours of usable laptop runtime per day of charging in high-altitude conditions, where solar irradiance is 25% higher than at sea level.

During the 2025 Texas winter ice storm, households with 100W solar setups and 60W PD controllers kept 45W, 65W laptops charged for 3, 5 hours daily for emergency alerts and remote work. These setups outperformed small power banks, which ran out of charge in 1, 2 days.

Frequently Asked Questions

Can I plug a solar panel directly into my laptop’s USB-C port?

No. Unregulated solar panels output variable voltage that spikes above the 20V maximum for USB-C PD, which destroys laptop charging circuitry. You always need a regulated MPPT charge controller with USB-C PD output between the panel and laptop.

What size solar panel do I need for a 90W MacBook Pro?

Use a 100W+ rigid monocrystalline portable panel paired with a 100W MPPT PD charge controller. Flexible CIGS panels can’t sustain the consistent high wattage this laptop needs, per aggregate user reviews of MacBook solar charging setups.

How long does it take to charge a laptop with solar?

A 50W panel charges a 45W ultrabook to 80% in 3, 4 hours of full sun. A 100W panel charges a 65W laptop to 80% in 2, 2.5 hours. Cloudy conditions double these times, and partial shading stops charging entirely.

Do I need an inverter for solar-to-USB-C laptop charging?

No, if you use an MPPT charge controller with a built-in USB-C PD port. Inverters add unnecessary weight, cost, and energy loss for portable setups. Skip the inverter for direct USB-C PD charging.

Final Decision Guide: Is This Setup Right For You?

This setup is worth it if you need regular off-grid laptop power in sunny conditions, and your laptop requires 45W, 90W USB-C PD input. It’s also a solid emergency backup if you have 4+ hours of daily sun to recharge components.

Skip it if you live in a consistently cloudy climate, own a 140W+ high-performance laptop that runs for hours on end, or only need off-grid power 1, 2 times per month. For those cases, a high-capacity USB-C PD power bank is cheaper, simpler, and more reliable.
